Papers Explained 225: FastViT

5 min readOct 4, 2024

FastViT is a hybrid vision transformer architecture featuring a novel token mixing operator called RepMixer, which significantly improves model efficiency, achieving faster inference speeds with minimal impact on accuracy compared to other state-of-the-art models.

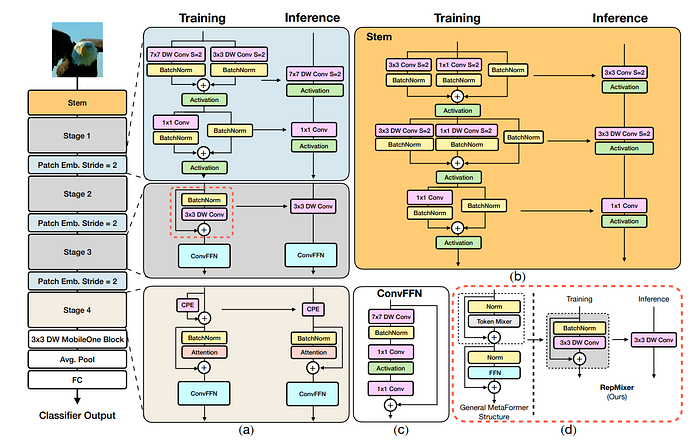

Architecture

FastViT is a hybrid transformer and has four distinct

stages which operate at different scales. It uses RepMixer, a token mixer that reparameterizes a skip connection, which helps in alleviating memory access cost.

To further improve efficiency and performance, the dense k×k convolutions commonly found in stem and patch embedding layers were replaced with its factorized version that uses train-time overparameterization.

Self-attention token mixers are computationally expensive, especially at higher resolutions, hince large kernel convolutions are used as an efficient alternative to improve receptive field in early stages of the network architecture.

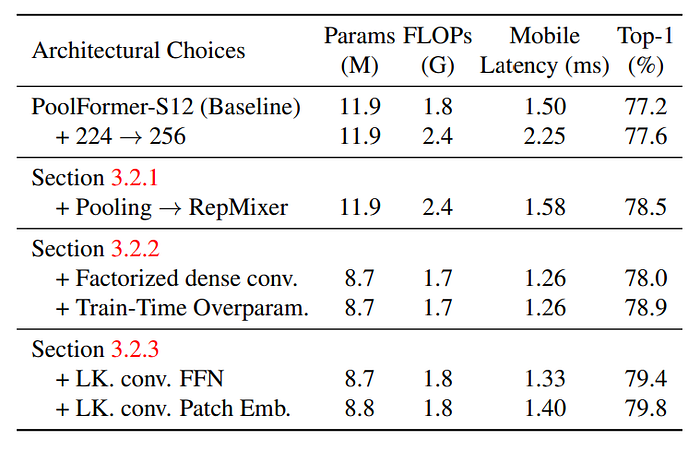

Analysis of architectural choices made to obtain FastViT-S12 variant, starting from PoolFormer-S12. “LK.” stands for Large Kernel.

Reparameterizing Skip Connections

RepMixer Convolutional mixing was first introduced in ConvMixer. For an input tensor X, the mixing block in the layer was implemented as:

where σ is a non-linear activation function.

Meanwhile in RepMixer, the operations are simply rearranged and the non-linear activation function is removed as:

The main benefit of this design is that it can be reparameterized at inference time to a single depthwise convolutional layer as:

Conditional positional encodings that are dynamically generated and conditioned on the local neighborhood of the input tokens are used.

These encodings are generated as a result of a depthwise convolution operator and are added to the patch embeddings.

Linear Train-time Overparameterization

To further improve efficiency, all dense k × k are replaced with their factorised version i.e. depthwise followed by paintwise convolutions. In order to balance the diminishing capacity , the layers found in the convolutional stem, patch embedding and projection layers are overparameterized at train time.

Large Kernel Convolutions

To improve the receptive field of early stages, in a computationally efficient approach, depthwise large kernel convolutions are introduced in FFN and patch embedding layers.

Experiments

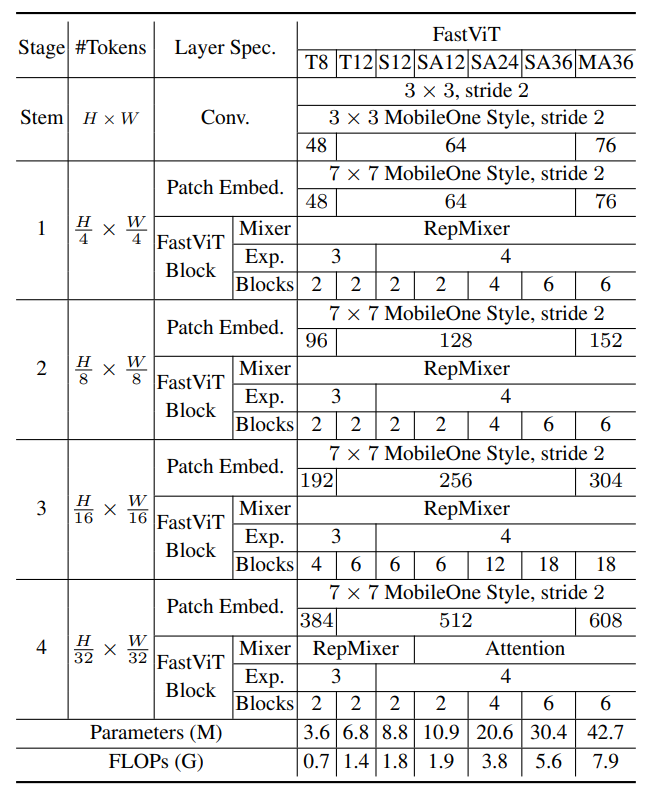

Architecture details of FastViT variants.

Models with smaller embedding dimensions, i.e. [64, 128, 256, 512] are prefixed with “S”.

Models that contain SelfAttention layers are prefixed with “SA”.

Models with bigger embedding dimensions, i.e. [76, 152, 304, 608] are prefixed with “M”.

Models with MLP expansion ratio less than 4 are prefixed with “T”.

The number in the notation denotes total number of FastViT blocks.

Evaluation

Comparison with SOTA Models

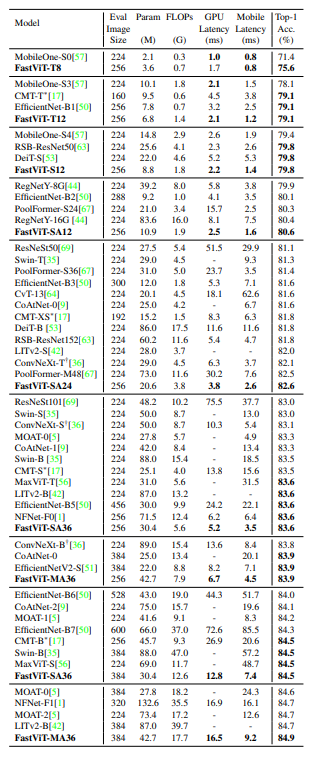

Comparison of different state-of-the-art methods on ImageNet-1k classification.

FastViT-MA36 is 49.3% smaller and consumes 55.4% less FLOPs than LITv2-B at Top-1 accuracy of 84.9%
FastViT-S12 is 26.3% faster than MobileOne-S4 on iPhone 12 Pro and 26.9% faster on GPU
FastViT-MA36 is 1.9× faster than an optimized ConvNeXt-B model on iPhone 12 Pro and 2.0× faster on GPU at Top-1 accuracy of 83.9%
FastViT-MA36 is just as fast as NFNet-F1 on GPU at Top-1 accuracy of 84.9%
FastViT-MA36 is 66.7% smaller and uses 50.1% less FLOPs than NFNet-F1 and is 42.8% faster on a mobile device.

Knowledge distillation

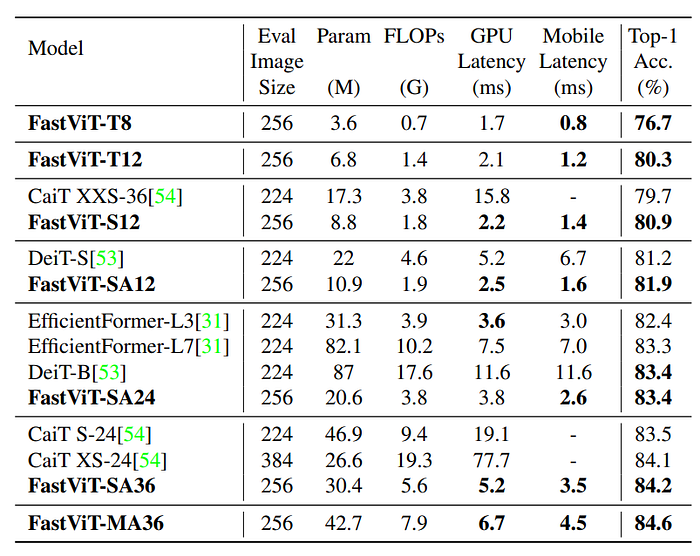

Comparison of different state-of-the-art methods on ImageNet-1k classification when trained using distillation objective.

FastViT outperforms recent state-of-the-art model EfficientFormer.
FastViT-SA24 attains similar performance as EfficientFormer-L7 while having 3.8× less parameters, 2.7× less FLOPs and 2.7× lower latency.

Robustness Evaluation

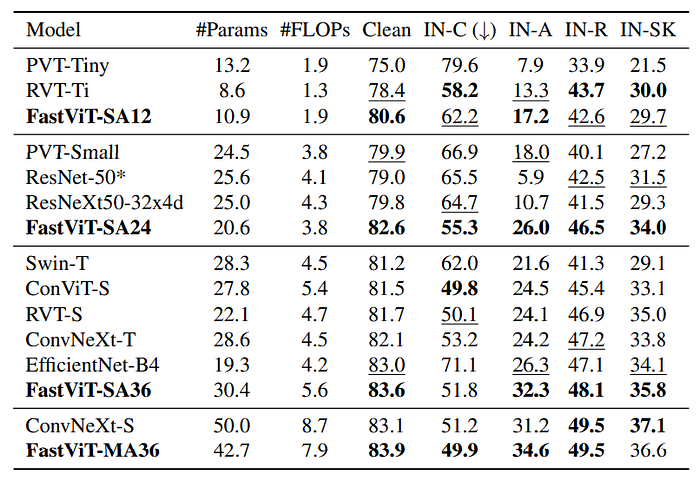

Results on robustness benchmark datasets.

ImageNet-A: Contains naturally occurring examples misclassified by ResNets.
ImageNet-R: Contains natural renditions of ImageNet object classes with different textures and local image statistics.
ImageNet-Sketch: Contains black and white sketches of all ImageNet classes obtained using Google image queries.
ImageNet-C: Consists of algorithmically generated corruptions (blur, noise) applied to the ImageNet test-set.
Architectural choices, such as using large kernel convolutions in FFN and patch-embedding layers in combination with self-attention layers, contribute to improved model robustness.
FastViT model is highly competitive with RVT and ConvNeXt, with better clean accuracy, better robustness to corruptions, and similar out-of-distribution robustness compared to ConvNeXt-S, which has more parameters and FLOPs.

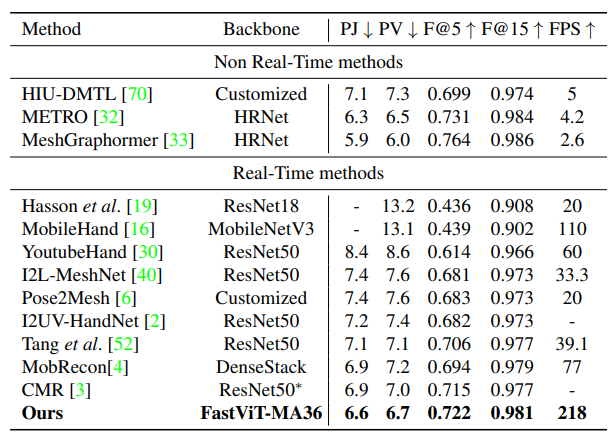

3D Hand mesh estimation

FastViT outperforms other real-time methods on all joint and vertex error metrics. It is 1.9× faster than MobileHand and 2.8× faster than the recent state-of-the-art MobRecon method.
