Papers Explained 94: ConvNeXt V2
The ConvNeXt model demonstrated strong results but struggles when combined with self-supervised learning (MAE). ConvNeXt V2 addresses this by incorporating a fully convolutional masked autoencoder framework and a Global Response Normalization (GRN) layer, boosting performance across multiple benchmarks.
Recommended Readings: [Papers Explained 92: ConvNeXt]

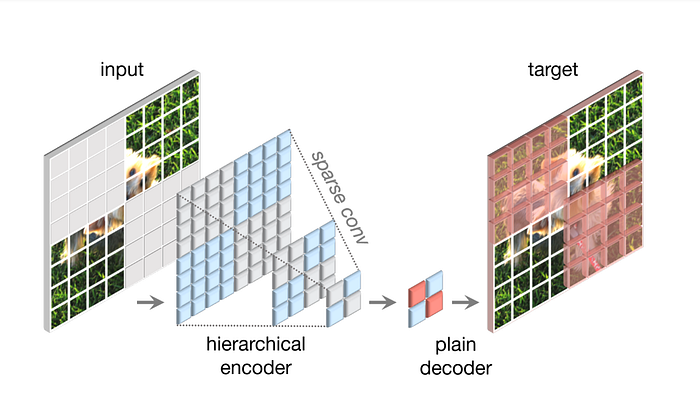

Fully Convolutional Masked Autoencoder
Masking
60% of the 32×32 patches are randomly removed from the original image. Only random resized cropping is used for data augmentation.
Encoder Design
Conv Next model is used as the encoder. However during pre-training the standard convolution layer are converted to sub manifold parse convolutions so that the model operates only on the visible data points. The sparse convolutions can be converted back to standard convolutions at the fine turning stage without requiring any additional handling.
Decoder Design
A lightweight, plain ConvNeXt block is used as the decoder.
Reconstruction Target
Mean Squared Error is computed between the masked patches of the reconstructed image and patch-wise normalized original image.
Experiment Setup
Pre Training & Fine Tuning are done on the ImageNet-1K dataset for 800 & 100 epochs respectively.
Global Response Normalization

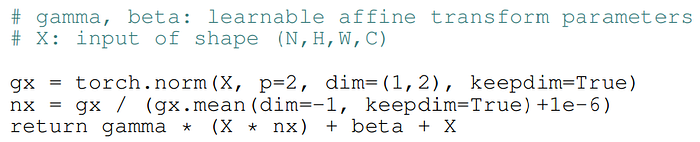

GRN aims to increase the contrast and selectivity of channels. Given an input feature, the GRN unit performs three steps: 1) global feature aggregation, 2) feature normalization, and 3) feature calibration.

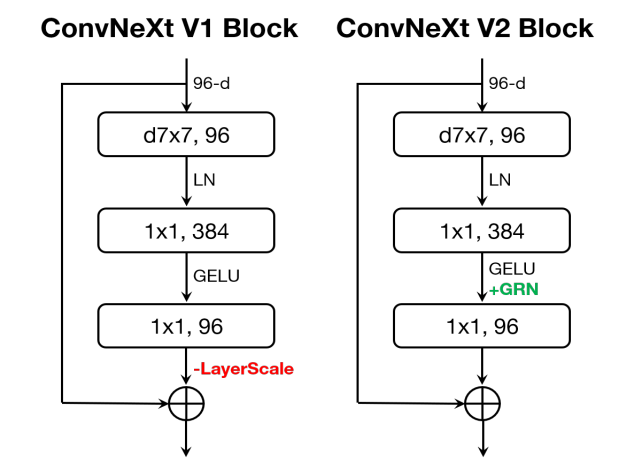

In ConvNeXt V2, the GRN layer is added after the dimension expansion MLP layer. and the LayerScale is dropped as it becomes redundant.
Experiments
ImageNet-1K

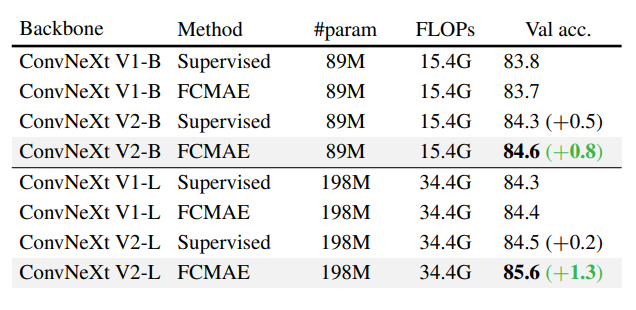

- Using FCMAE alone without modifying model architecture has limited impact on representation learning quality.
- The new GRN layer has a minor effect on performance in supervised setup.
- Combining FCMAE framework and GRN layer leads to significant improvement in fine-tuning performance.

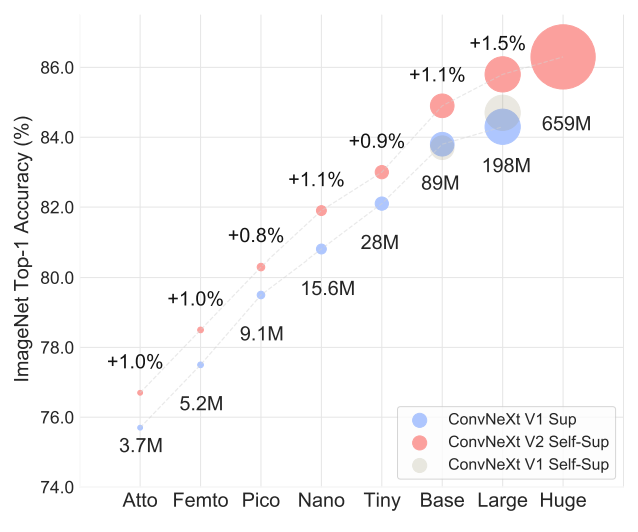

- Model performance consistently improves with increasing model size, as demonstrated by strong scaling behavior across the range of sizes (3.7M to 650M).
- Pretraining models using the proposed FCMAE framework and fine-tuning yields better results compared to fully supervised training.
- The framework outperforms the Swin transformer pre-trained with SimMIM across all model sizes.
- In comparison to the plain ViT pre-trained with MAE, the proposed approach performs similarly up to the Large model regime while using fewer parameters.
- In the huge model regime, the proposed approach slightly lags behind, potentially due to the potential greater benefit of self-supervised pre-training for large ViT models.

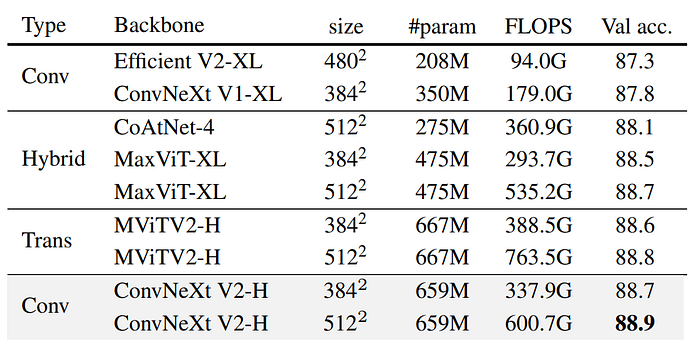

- The ConvNeXt V2 Huge model equipped with the FCMAE pretraining outperforms other architectures and sets a new state-ofthe-art accuracy of 88.9% among methods using public data only.

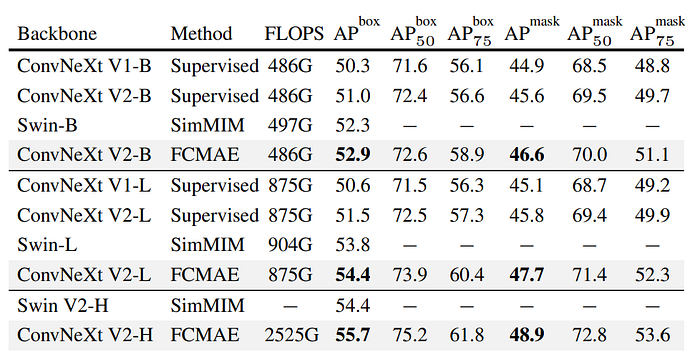

Object detection and segmentation on COCO
- Moving from supervised to FCMAE-based self-supervised learning further improves model performance.
- The combination of the introduced GRN layer and FCMAE-based self-supervised learning leads to the best performance.
- ConvNeXt V2 pre-trained on FCMAE outperforms Swin transformer models across all model sizes in terms of performance.

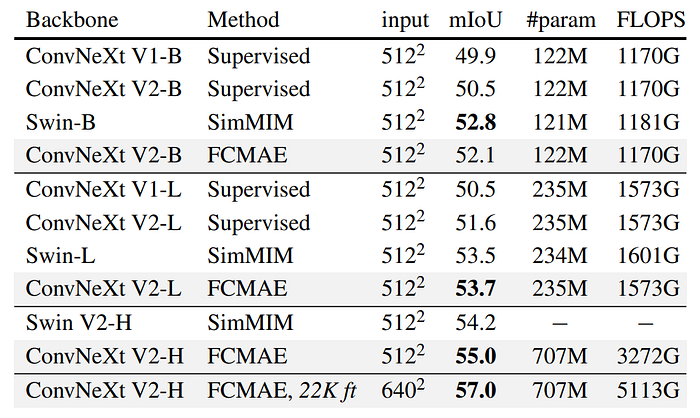

Semantic segmentation on ADE20K
- UperNet framework improves semantic segmentation on the ADE20K dataset compared to V1 supervised counterparts and performs competitively with Swin transformer models, especially outperforming Swin in the huge model regime.
Paper
ConvNeXt V2: Co-designing and Scaling ConvNets with Masked Autoencoders 2301.00808
