Papers Explained 50: PaLM
Pathways Language Model (PaLM) is a 540-billion parameter, densely activated, Transformer language model. It is trained on 6144 TPU v4 chips using Pathways, a new ML system that enables highly efficient training across multiple TPU Pods.
PaLM 540B achieves breakthrough performance, outperforming the finetuned state of the art on a suite of multi-step reasoning tasks, and outperforming average human performance on the recently released BIG-bench benchmark. A significant number of BIG-bench tasks showed discontinuous improvements from model scale, meaning that performance steeply increased as they scaled to their largest model. PaLM also has strong capabilities in multilingual tasks and source code generation.
Model Architecture
PaLM uses a standard Transformer model architecture in a decoder-only setup with the following modifications:
SwiGLU Activation
SwiGLU activations (Swish(xW) · xV) are used for the MLP intermediate activations because it has been shown that they significantly increase quality compared to standard ReLU, GeLU, or Swish activations.
Parallel Layers
A “parallel” formulation is used in each Transformer block rather than the standard “serialized” formulation. Specifically, the standard formulation can be written as:
y = x + MLP(LayerNorm(x + Attention(LayerNorm(x)))
Whereas the parallel formulation can be written as:
y = x + MLP(LayerNorm(x)) + Attention(LayerNorm(x))
The parallel formulation results in roughly 15% faster training speed at large scales, since the MLP and Attention input matrix multiplications can be fused. Ablation experiments showed a small quality degradation at 8B scale but no quality degradation at 62B scale, leading to extrapolation that the effect of parallel layers should be quality neutral at the 540B scale.
Multi-Query Attention
The standard Transformer formulation uses k attention heads, where the input vector for each timestep is linearly projected into “query”, “key”, and “value” tensors of shape [k, h], where h is the attention head size. Here, the key/value projections are shared for each head, i.e. “key” and “value” are projected to [1, h], but “query” is still projected to shape [k, h]. This has a neutral effect on model quality and training speed but results in significant cost savings at autoregressive decoding time. This is because standard multi-headed attention has low efficiency on accelerator hardware during auto-regressive decoding, the key/value tensors are not shared between examples, and only a single token is decoded at a time.
RoPE Embeddings
RoPE embeddings are used rather than absolute or relative position embeddings since RoPE embeddings have been shown to have better performance on long sequence lengths.
Shared Input-Output Embeddings
The input and output embedding matrices are shared, which is done frequently (but not universally) in past work.
No Biases
No biases were used in any of the dense kernels or layer norms. It was found that this resulted in increased training stability for large models.
Vocabulary
A SentencePiece vocabulary with 256k tokens is used, which was chosen to support a large number of languages in the training corpus without excessive tokenization. The vocabulary is completely lossless and reversible, meaning that whitespace is entirely preserved in the vocabulary (especially important for code), and out-of-vocabulary Unicode characters are split into UTF-8 bytes, with a vocabulary token for each byte. Numbers are always split into individual digit tokens.
Model Scale Hyperparameters
Training Dataset
The PaLM pretraining dataset is comprised of a high-quality corpus of 780 billion tokens, representing a wide range of natural language use cases. The dataset is a mixture of filtered webpages, books, Wikipedia articles, news articles, source code, and social media conversations. This dataset is based on the datasets used to train LaMDA and GLaM.
All three models are trained on exactly one epoch of the data (shuffled identically for all models), and the mixing proportions are chosen to avoid repeating data in any subcomponent.
In addition to natural language data, code is included in the pretraining dataset. The source code in the pretraining dataset is obtained from open-source repositories on GitHub. The files are filtered by the license included in the repository, excluding copyleft licenses. The files are also filtered by filename extension to restrict them to one of 24 common programming languages, including Java, HTML, JavaScript, Python, PHP, C#, XML, C++, and C, resulting in 196GB of source code. Furthermore, duplicates are removed based on the Levenshtein distance between the files since duplicate files are known to be common in source code repositories.
Training Infrastructure
The model is trained using JAX and T5X frameworks on TPU v4 Pods, which consist of TPU chips connected over a data center network. The system used in this case includes 3072 TPU v4 chips attached to 768 hosts, allowing for efficient scaling without pipeline parallelism.
Previous reports on large-scale training used different approaches. Some models were trained on a single TPU system without pipeline parallelism or data center network utilization, while others used a combination of model, data, and pipeline parallelism or pipelining between pods.
There are certain drawbacks of pipelining, such as idle time and higher memory bandwidth requirements. To overcome these limitations PaLM employed a strategy without pipeline parallelism. Each TPU v4 Pod contains a complete copy of the model parameters, partitioned over multiple chips using model parallelism and fully sharded data parallelism. During the forward pass, weights are gathered over the data parallel axis, and selected activation tensors are saved. During the backward pass, the remaining activations are rematerialized, resulting in higher training throughput at larger batch sizes.

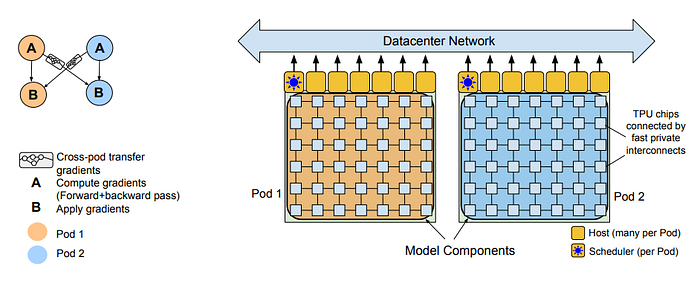

To scale training beyond a single TPU v4 Pod, the Pathways system is used. It utilizes a client-server architecture to achieve two-way data parallelism at the pod level. A Python client dispatches half of the training batch to each pod, where forward and backward computations are performed in parallel using within-pod data and model parallelism. The gradients computed on each pod are then transferred to the other pod, and parameter updates are applied in parallel to obtain identical parameters for the next time step.
The Python client constructs a sharded dataflow program that launches JAX/XLA work on remote servers comprising TPU pods. The program includes components for within-pod computation, cross-pod gradient transfer, and optimizer update. Latency is masked through asynchronous gang-scheduling, and the cost of managing data transfers is amortized through a sharded-dataflow execution model.
There are certain challenges in achieving high training throughput for cross-pod gradient transfers at the scale of 6144 TPU v4 chips. To address this, the Pathways networking stack is carefully designed, breaking down gradient transfers into smaller chunks and routing them through multiple smaller flows over diverse data center network links. With these optimizations, the training throughput is approximately 1.95 times higher compared to a single pod during training, with some performance gaps due to the lack of overlap between the backward pass and cross-pod gradient reduction.
Training Efficiency
The Hardware FLOPs utilization (HFU) is system-dependent, can vary based on implementation and design choices, and does not consider the ultimate goal of achieving high throughput in tokens per second. Hence a new metric called Model FLOPs Utilization (MFU), is used, which is implementation-independent and allows for a fairer comparison of efficiency between different systems.
Training Setup
Weight initialization
The kernel weights (i.e., everything but the embeddings and layer norm scales) are initialized with “fan-in variance scaling”, i.e., W ∼ N (0, 1/ √ nin), where nin is the input dimension of the kernel. The input embeddings are initialized to E ∼ N (0, 1), since layer normalization is not applied to the embeddings. Because the input and output embedding layers are shared, we scale the pre-softmax output logits by 1/ √ n, where n is the embedding size.
Optimizer
The model was trained with the Adafactor optimizer, without factorization. This is effectively equivalent to Adam with “parameter scaling,” which scales the learning rate by the root-mean-square of the parameter matrix. Because the weight initialization is proportional to 1/ √ n, the effect of this is similar to the manual scaling down of Adam learning rate.
Optimization hyperparameters
An Adafactor learning rate of 10−2 is used for the first 10,000 steps, which is then decayed at a rate of 1/√k, where k is the step number. β1 = 0.9 and β2 = 1.0 − k − 0.8 are used for training. This has been found to be more stable than the standard β2 = 0.99 when training large language models because poorly estimated second moments over shorter windows can be caused by rare embedding tokens. Global norm gradient clipping with a value of 1.0 is used for all models. During training, a dynamic weight decay of lr² is used, where lr is the current learning rate.
Loss function
The model is trained with the standard language modeling loss function, which is the average log probability of all tokens without label smoothing. An auxiliary loss of z loss = 10^−4 · log2 Z is additionally used to encourage the softmax normalizer log(Z) to be close to 0, as it is found to increase the stability of training.
Sequence length
A sequence length of 2048 was used for all models. Input examples are concatenated together and then split into sequences of exactly 2048 tokens so that there are no padding tokens, but examples may be split in the middle. Input examples are differentiated from one another with a special [eod] token.
Batch size
For all models, the batch size is increased during training. For the largest model, batch size 512 (1M tokens) is used until step 50k, then it is doubled to 1024 (2M tokens) until step 115k, and finally doubled again to 2048 (4M tokens) until training is complete at step 255k. Similar schedules were followed for the smaller models. The reason for using such a batch size schedule is twofold: (1) smaller batch sizes are more sample efficient (i.e., better loss as a function of tokens seen) earlier in training, while larger batch sizes are beneficial later in training due to better gradient estimates, and (2) larger batch sizes result in larger matrix multiplication dimensions, which increases TPU efficiency.
Bitwise determinism
The model is fully bitwise reproducible from any checkpoint. In other words, if the model has been trained up to step 17,000 in a single run, and we restart from checkpoint 15,000, then the training framework is guaranteed to produce identical results in both runs from checkpoint 15,000 to 17,000. This is achieved in two ways: (1) a bitwise-deterministic modeling framework provided by JAX+XLA+T5X, and (2) a deterministic dataset pipeline where the shuffled data is written out in a random-access format so the contents of a given training batch is only a function of the step number.
Dropout
The model was trained without dropout, although a dropout of 0.1 is used for finetuning in most cases.
Training Instability
During the training of the largest model, there were frequent spikes in the loss function, even though gradient clipping was implemented. These spikes occurred at irregular intervals, sometimes late in the training process, and were not observed in smaller models. Due to the high cost of training the largest model, a well-defined approach to address these spikes could not be determined.
However, a simple strategy was found to effectively mitigate the issue. The training was restarted from a checkpoint approximately 100 steps before the spike occurred, and around 200–500 data batches were skipped, encompassing the batches seen before and during the spike. By employing this mitigation method, the loss did not spike again at the same point.
The spikes were not believed to be caused by faulty data because experiments were conducted using the surrounding data batches, training from a different checkpoint, and no spikes were observed in those cases. This suggests that spikes only arise due to specific combinations of data batches and the model’s parameter state.
Evaluation
English NLP tasks
PaLM 540B excels over prior SOTA models, outperforming them in 24 of 29 1-shot tasks and 28 of 29 few-shot tasks. Notably, it achieves a remarkable 10+ point improvement in few-shot Reading Comprehension and NLI tasks. Not confined to size, PaLM 540B even surpasses a comparable model (Megatron-Turing NLG 530B) across all benchmarks, emphasizing the importance of pretraining data, training strategy, and token count.
Massive Multitask Language Understanding
PaLM 540B improves the average score of MMLU benchmark by ≈ 2 points. and outperforms the Chinchilla on all but one category.
Finetuning
Fine-tuning experiments for the PaLM model were conducted on the SuperGLUE benchmark. PaLM was fine-tuned using the Adafactor optimizer with a learning rate of 5 × 10−5 and a batch size of 32. Typically, convergence is achieved by PaLM in less than 15K steps of fine-tuning.
PaLM obtains competitive close-to-SOTA performance, even against encoder-decoder models which are shown to perform better than decoder only models.
There is a significant gap between few-shot and finetuned results.
PaLM is competitive with state-of-the-art (encoder-decoder models) and outperforms the decoder-only models by a wide margin.

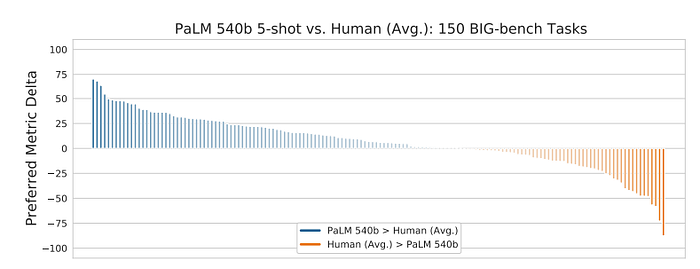

BIG-bench

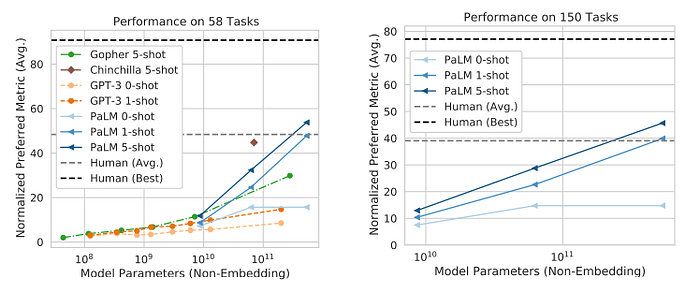

PaLM significantly outperforms both GPT-3, Gopher, and Chinchilla, and 5-shot PaLM 540B achieves a higher score than the average score of the humans asked to solve the same tasks.

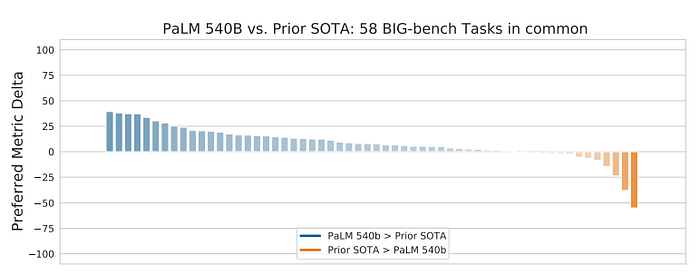

PaLM 540B 5-shot outperforms the prior SOTA on 44 out of the 58 common tasks.
PaLM 540B outperforms the average human performance on aggregate, it is still higher than PaLM 540B on 35% of the individual tasks.

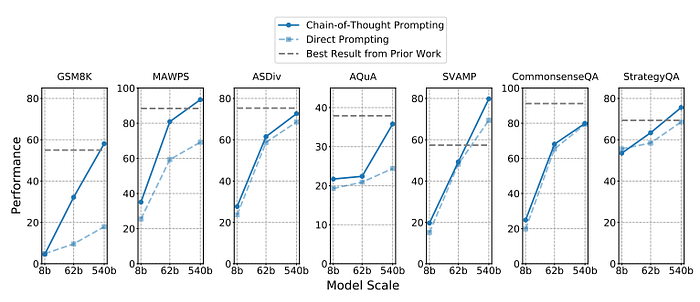

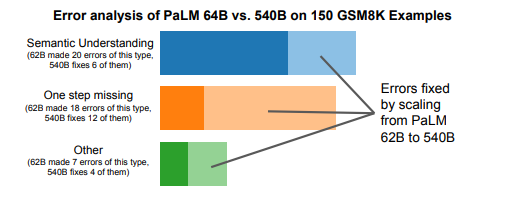

Reasoning

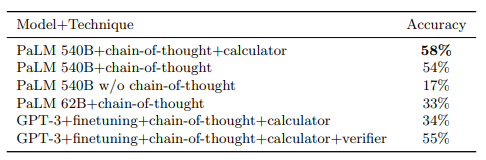

Using 8-shot chain-of-thought prompting in combination with an external calculator, PaLM 540B achieves a performance of 58%, outperforming the prior SOTA of 55% from GPT-3.
Across the 7 reasoning datasets, 8-shot prediction with PaLM 540B+chain-of-thought achieved SOTA accuracy on 4 tasks and close to SOTA on the remaining 3 tasks.
Code Tasks
PaLM model achieves comparable performance in few-shot evaluations to previously-published results from 50 times less Python code. This could be due to a combination of transfer from other programming languages and from natural language data and that larger models can be more sample efficient than smaller models.
Multilingual Natural Language Generation

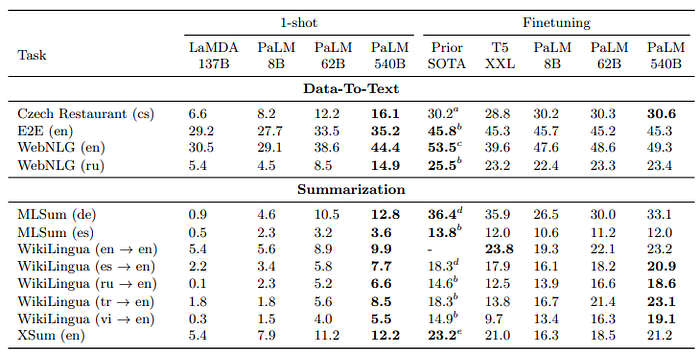

The 540B finetuned PaLM matches or improves the best SOTA on all English generation tasks, achieving a new finetuning state-of-the art result for 4 out of 6 non english summarization tasks.

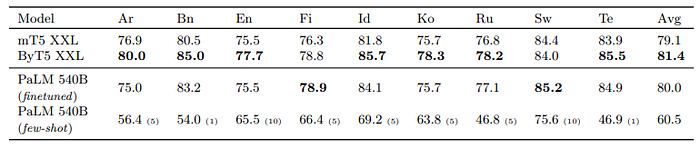

Multilingual Question Answering
PaLM 540B achieves competitive results despite not training on as much non-English data.
Paper

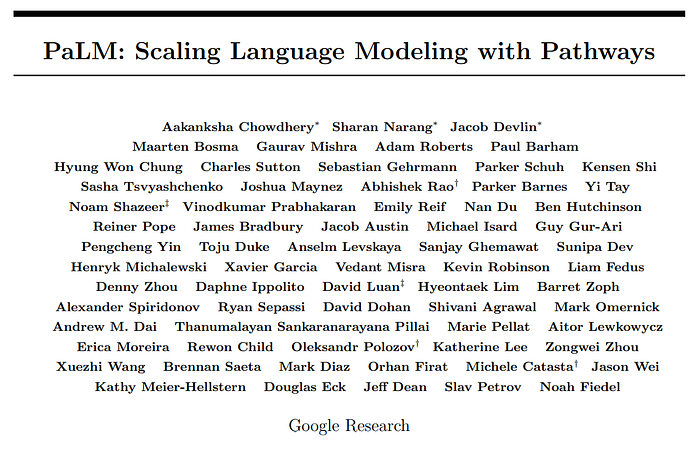

PaLM: Scaling Language Modeling with Pathways 2204.02311
