Papers Explained 155: BLIP 2

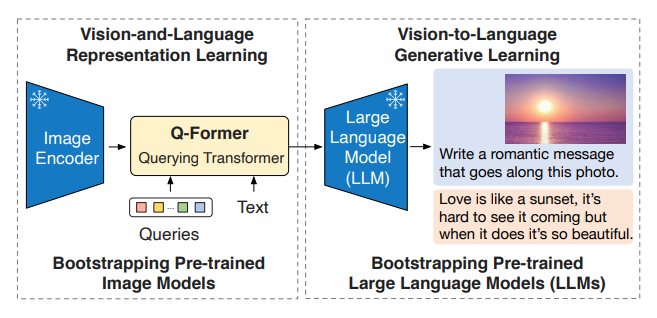

BLIP-2 is a generic and efficient pretraining strategy that bootstraps vision-language pre-training from off-the-shelf frozen pre-trained image encoders and frozen large language models. BLIP-2 bridges the modality gap with a lightweight Querying Transformer, which is pre-trained in two stages. The first stage bootstraps vision-language representation learning from a frozen image encoder. The second stage bootstraps vision-to-language generative learning from a frozen language model.
The project is available at GitHub.
Recommended Reading [BLIP]
Model Architecture

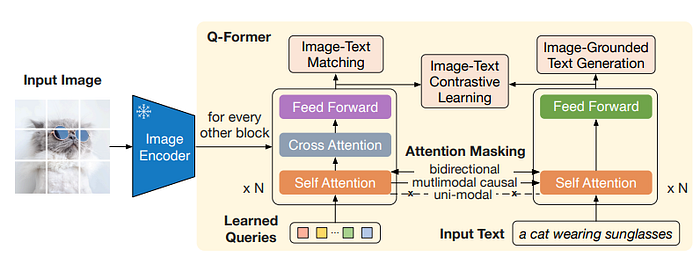

Q-Former is a trainable module to bridge the gap between the frozen image encoder and LLM. It consists of two transformer submodules that share the same self-attention layers: (1) an image transformer that interacts with the frozen image encoder for visual feature extraction, (2) a text transformer that can function as both a text encoder and a text decoder.
A set number of learnable query embeddings are created as input to the image transformer. The queries interact with each other through self-attention layers, and interact with frozen image features through cross-attention layers and can additionally interact with the text through the same self-attention layers. Depending on the pre-training task, different self-attention masks are applied to control query-text interaction.
In the experiments 32 queries with a dimension of 768 (same as the hidden dimension of the Q-Former) are used.
QFormer is initialized with the pre-trained weights of BERT base, whereas the cross-attention layers are randomly initialized.
The size of output query representation Z (32 × 768) is much smaller than the size of frozen image features (e.g. 257 × 1024 for ViT-L/14) forcing the queries to extract visual information that is most relevant to the text.
Bootstrap Vision-Language Representation Learning from a Frozen Image Encoder
Q-Former is connected to a frozen image encoder and pre-training is performed using image-text pairs aiming to make the queries learn to extract visual representation that is most informative of the text.

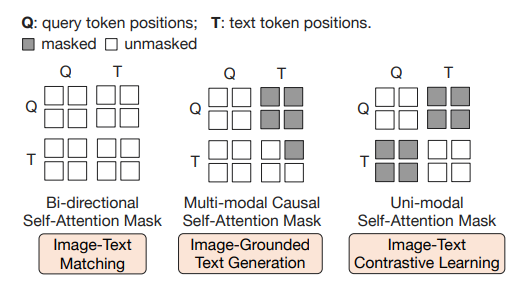

Inspired by BLIP three pre-training objectives are jointly optimized, sharing the same input format and model parameters, but employing a different attention masking strategy between queries and text to control their interaction.
Image-Text Contrastive Learning (ITC) learns to align image representation and text representation such that their mutual information is maximized by contrasting the image-text similarity of a positive pair against those of negative pairs.
The output query representation Z from the image transformer is aligned with the text representation t from the text transformer, where t is the output embedding of the [CLS] token. Since Z contains multiple output embeddings (one from each query), the pairwise similarity between each query output and t, is computed and then the highest one is selected as the image-text similarity. To avoid information leak, a unimodal self-attention mask, where the queries and text are not allowed to see each other is used.
Image-grounded Text Generation (ITG) loss trains the Q-Former to generate texts, given input images as the condition.
A multimodal causal self-attention mask is used to control query-text interaction.The queries can attend to each other but not the text tokens. Each text token can attend to all queries and its previous text tokens. The [CLS] token is replaced with a new [DEC] token as the first text token to signal the decoding task.
Image-Text Matching (ITM) aims to learn fine-grained alignment between image and text representation. It is a binary classification task where the model is asked to predict whether an image-text pair is positive (matched) or negative (unmatched).
A bi-directional self-attention mask is used where all queries and texts can attend to each other. The output query embeddings Z thus capture multimodal information. Each output query embedding is fed into a two-class linear classifier to obtain a logit, and the logits across all queries are averaged as the output matching score. Hard negative mining strategy is used to create informative negative pairs.
Bootstrap Vision-to-Language Generative Learning from a Frozen LLM

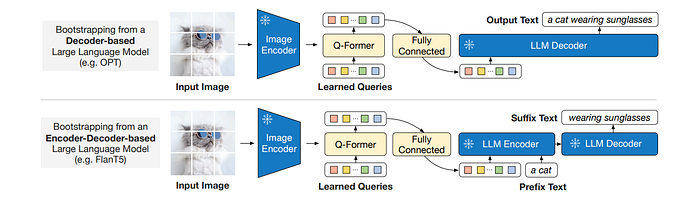

QFormer (with the frozen image encoder attached) is connected to a frozen LLM to harvest the LLM’s generative language capability. A fully-connected layer is used to linearly project the output query embeddings Z into the same dimension as the text embedding of the LLM.
The projected query embeddings are then prepended to the input text embeddings to function as soft visual prompts that condition the LLM on visual representation extracted by the Q-Former.
For decoder based LLMs, the frozen LLM is tasked to generate the text conditioned on the visual representation from Q-Former.
For encoder-decoder-based LLMs, text is split into two parts. The prefix text is concatenated with the visual representation as input to the LLM’s encoder. The suffix text is used as the generation target for the LLM’s decoder.
Pre-training settings
The same pre-training data as BLIP is used. The models are pre-trained for 250k steps in the first stage and 80k steps in the second stage.
For the image encoder, ViT-L/14 from CLIP and ViT-g/14 from EVA-CLIP are explored. The last layer of the ViT is removed and the second last layer’s output features are used, which leads to slightly better performance.
For the decode only LLMs, OPT model family is explored. For encoder-decoder-based language models FlanT5 model family is explored.
Evaluation

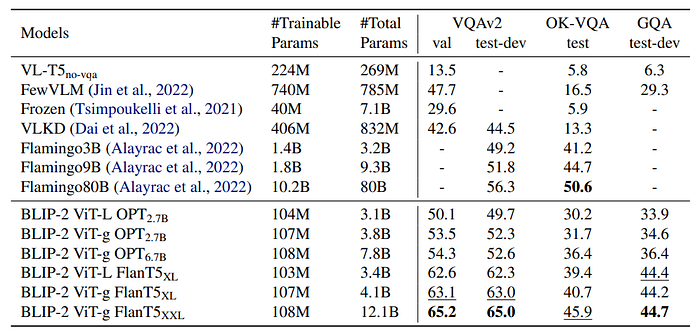

Instructed Zero-shot Image-to-Text Generation
- Appended text and visual prompts are used as inputs for the LLM.
- Zero-shot VQA evaluation performed using OPT models (prompt format “Question: {} Answer:”) and FlanT5 models (prompt format “Question: {} Short answer:”).
- Beam search with a beam width of 5 used during generation, along with a length-penalty set to -1.
- BLIP-2 achieves state-of-the-art results on VQAv2 and GQA datasets.
- Outperforms Flamingo80B by 8.7% on VQAv2 despite having 54x fewer trainable parameters.
- Comes secondary to Flamingo80B on OK-VQA dataset, possibly due to focus on open-world knowledge rather than visual understanding.

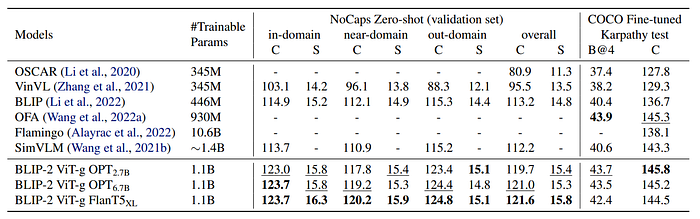

Image Captioning
BLIP 2 model are fintuned. The prompt “a photo of” is used as an initial input to the LLM. The model is trained with language modeling loss while keeping the LLM frozen and updating the parameters of the Q-Former together with the image encoder.
- Achieved state-of-the-art performance on image captioning task.
- Significant improvement over existing methods in NoCaps domain.

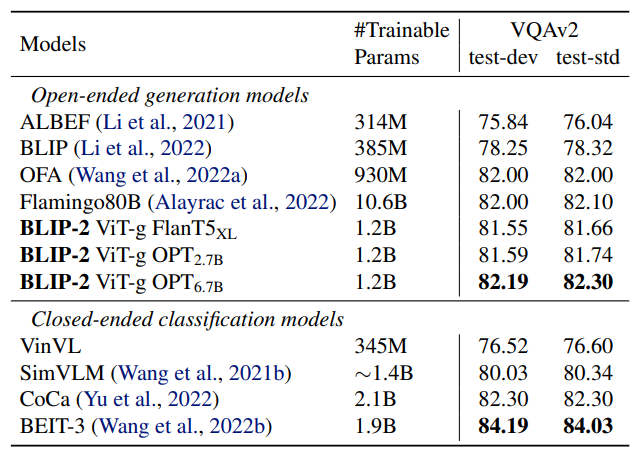

Visual Question Answering
Q-Former and image encoder are finetuned using annotated VQA data, while keeping LLM frozen.
- State-of-the-art results among open-ended generation models

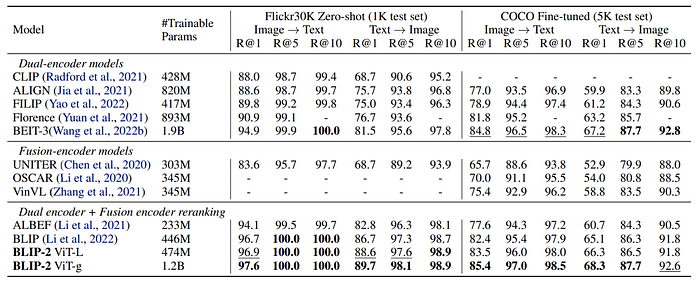

Image-Text Retrieval
The first-stage-pretrained model without LLM is finetuned for image-text retrieval using the same objectives as pre-training: ITC (Image-Text Contrast), ITM (Image-Text Matching), and ITG (Image-Grounded Text Generation)
- State-of-the-art performance with significant improvement over existing methods on zero-shot image-text retrieval
- ITC and ITM losses are essential for image-text retrieval as they directly learn image-text similarity
- ITG loss is also beneficial for image-text retrieval, supporting the intuition that it enforces queries to extract visual features most relevant to text
Paper
BLIP-2: Bootstrapping Language-Image Pre-training with Frozen Image Encoders and Large Language Models 2301.12597
